ATHH Green Tube — Canopy-Edge Visibility, Built for Outdoor Petrol Stations
High Brightness / Outdoor Signage Lighting
ATHH Green Tube

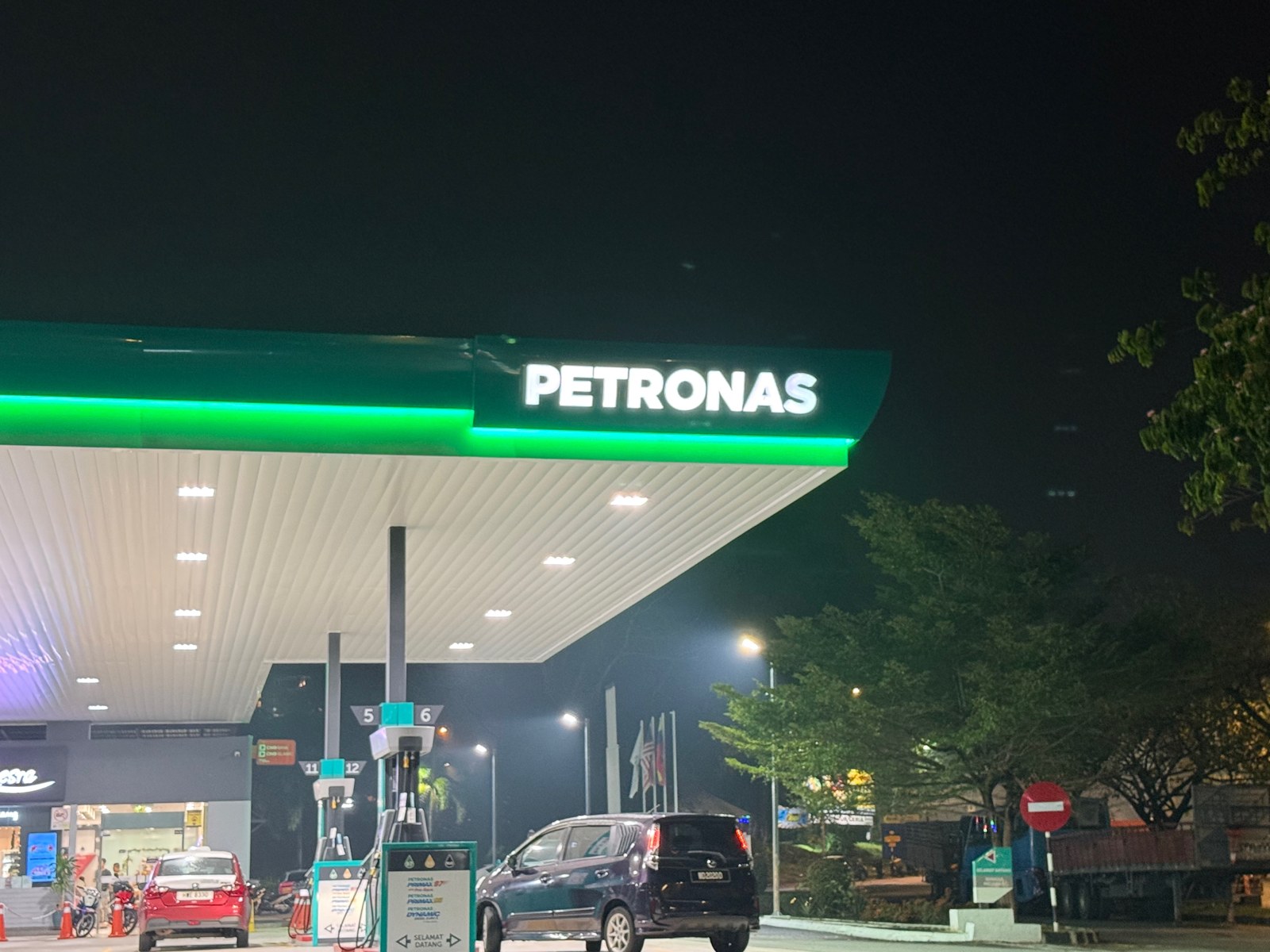

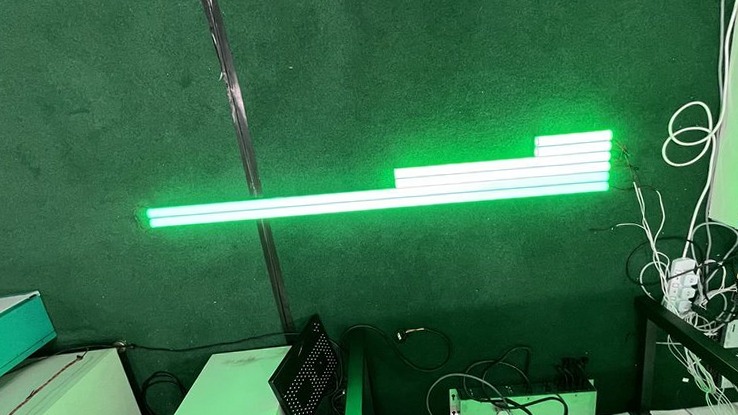

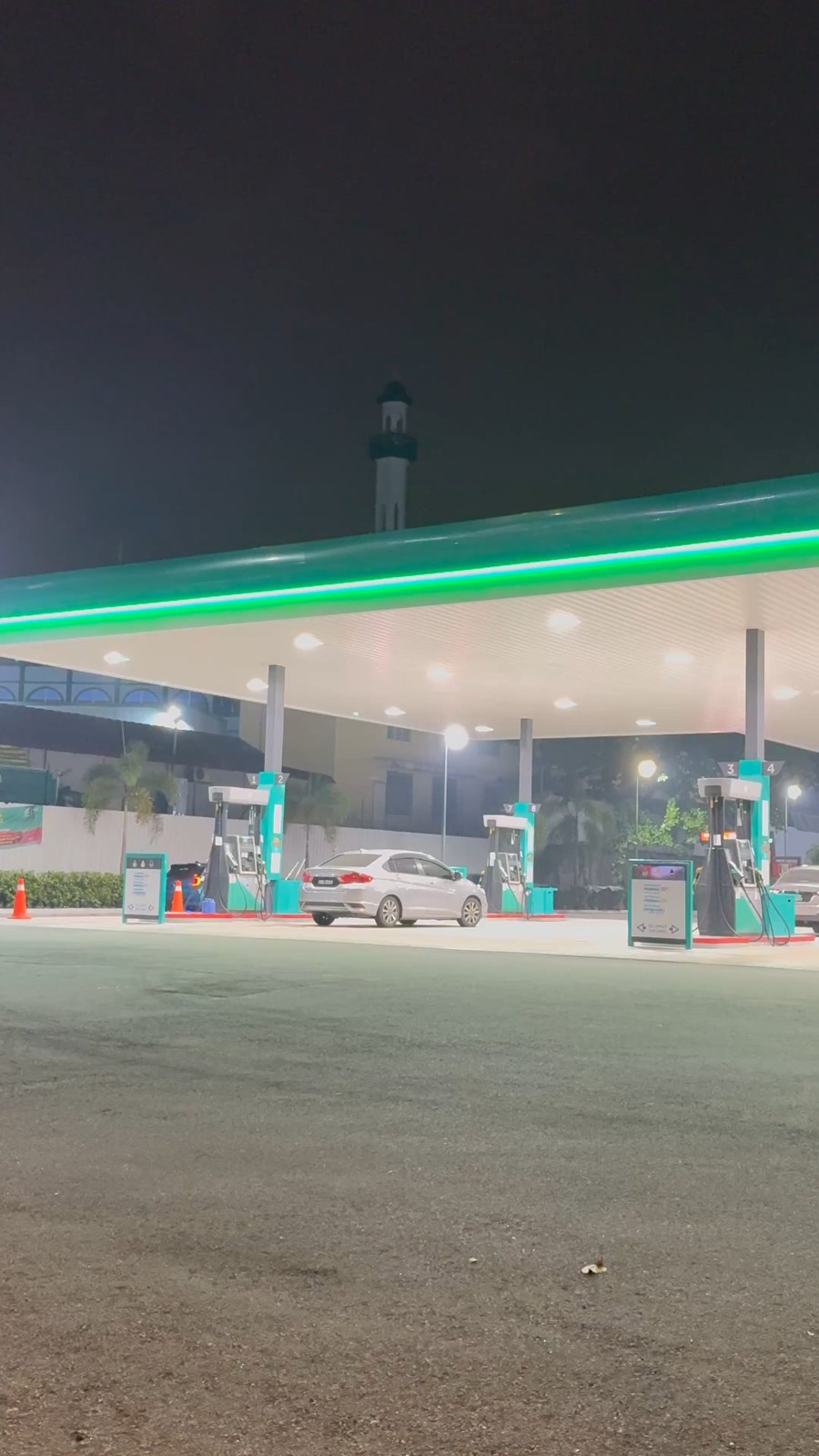

ATHH Green Tube is a high-brightness linear lighting solution designed for petrol stations, canopy edges, signage, and industrial applications where strong visibility and durability are required. It delivers a consistent green lighting effect for architectural highlighting while maintaining reliable outdoor performance. Built with IP65 dustproof and water-resistant protection, the system operates on a 48V DC low-voltage platform and is engineered for long service life in demanding environments.
Key Features
ATHH is designed for high-performance outdoor lighting with emphasis on brightness, durability, and installation flexibility. The IP65 rating ensures protection against dust and water ingress, while the 48V DC system provides stable and safe operation. The tube is cuttable at 30mm intervals, allowing precise site adaptation without uneven lighting or waste sections.

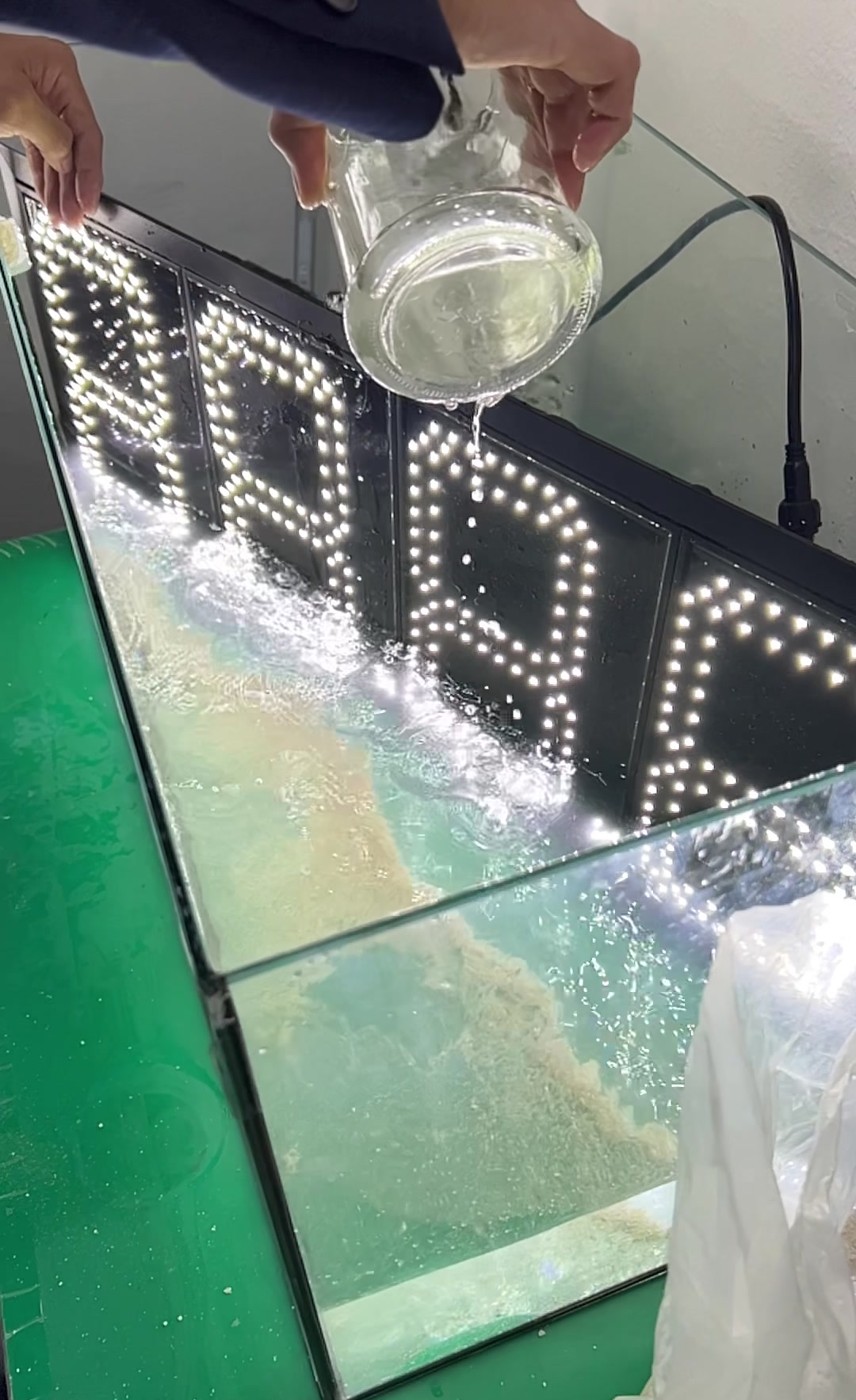

- IP65 protection against dust and water ingress
- 48V DC system for stable and safe operation
- Cuttable at 30mm intervals for precise site adaptation
Key Specification
Electrical & Performance Specification
| Operating Voltage | 48V DC |
|---|---|
| Power Consumption | 8.4W/m |
| Protection Rating | IP65 |
| Lifespan | ≥80,000 hours |
| Cutting Interval | 30mm |
| Warranty | 3 years standard, extendable to 5 |
Installation Flexibility

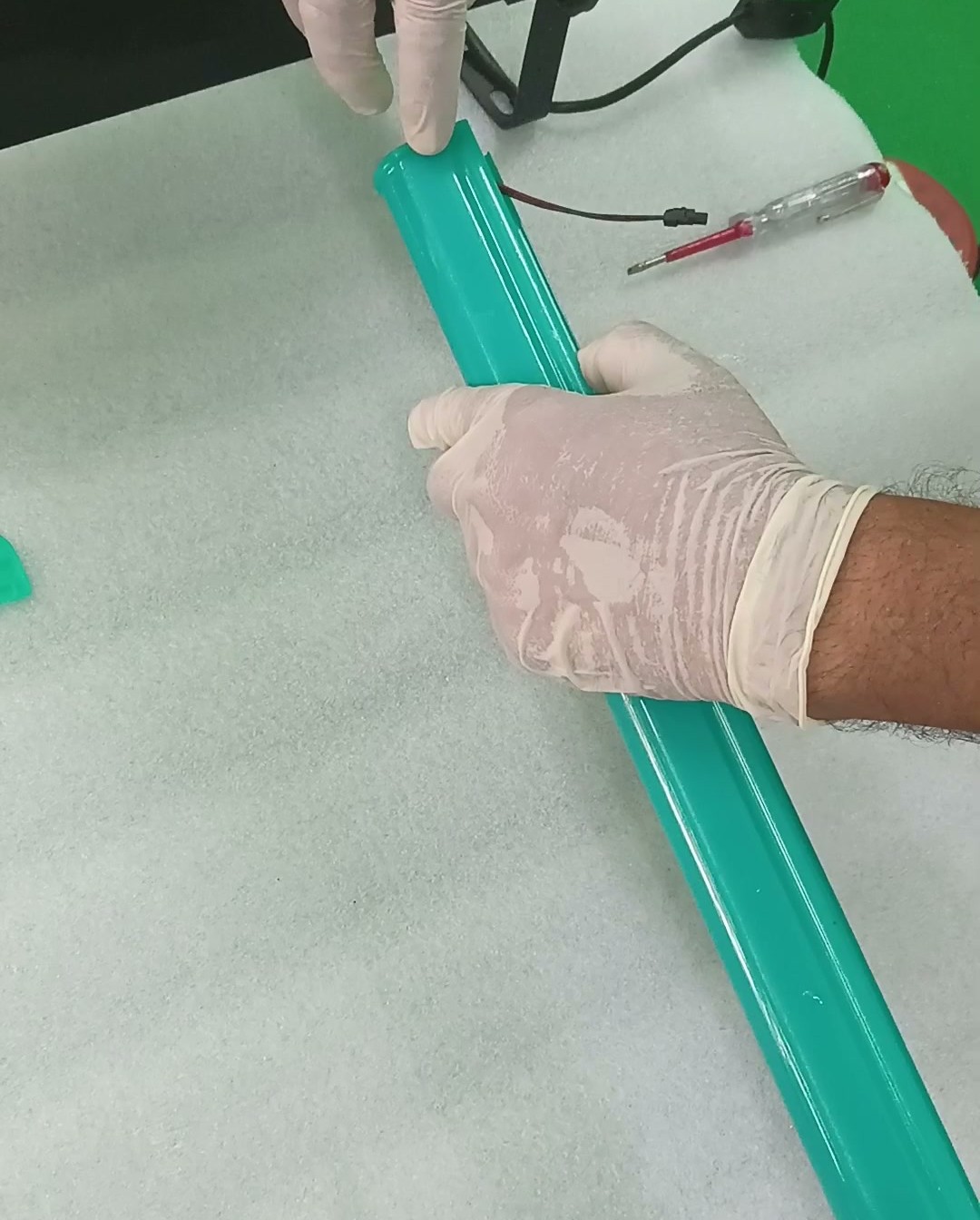

The 30mm cut interval design allows installers to match real site measurements accurately, ensuring clean alignment along canopy edges, fascia lines, and signage structures without visible gaps or uneven lighting transitions.
Drawing & Datasheet
Technical drawings and the product datasheet for the ATHH Green Tube.
Lighting up a canopy edge or signage line?
Tell us your canopy length, mounting surface and site layout, and we'll spec the right ATHH Green Tube run for your station.
